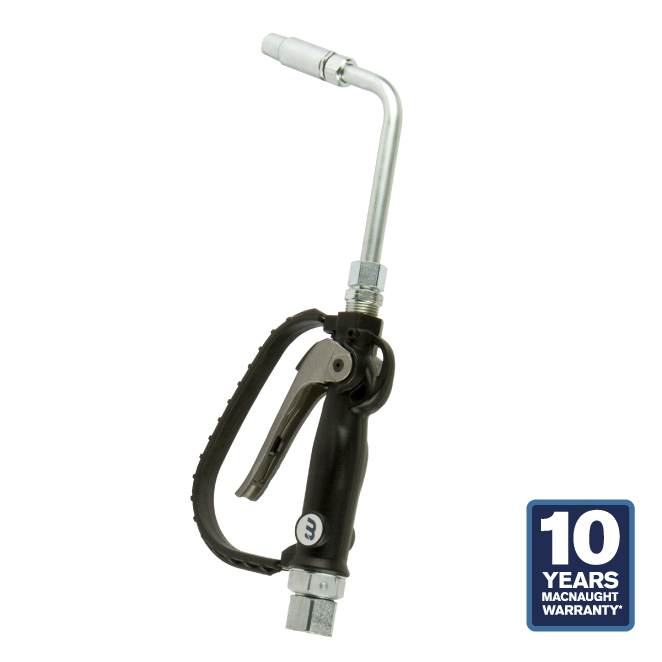

Rigid Nozzle Oil Delivery Gun, NPT.
Macnaught offers the HG20R-02 unmetered oil control with a rigid extension and automatic non-drip nozzle. It comes with a trigger guard, latching trigger and is fully serviceable. With a ½ inch NPT inlet and maximum working pressure up to 1000 psi (6900kPa) this gun delivers a flow rate of up to 8 gpm / 30 lpm. Used for oil, ATF and antifreeze up to a maximum viscosity of SAE 140.
INCLUDES 10 YEAR WARRANTY!
Frequently bought together with: Ratio Air Operated Oil Stub Pump OILMASTER® T312-02 or the Ratio Air Operated Oil Stub Pump OILMASTER® T512-02
Macnaught Metered Control Gun Specifications
| Model number |
HG20R-02 |
| Flow Range |
up to 8gal(30L)/min |
| Inlet Swivel |
1/2″ NPT (F) |
| Meter |
X |
| Meter Accuracy |
X |
| Max working temp |
150°F / 70°C |
| Extension |
Rigid |
| Non drip nozzle |
Automatic |
| Latching Trigger |
√ |
| Fully Serviceable |
√ |
Warranty
|
10 years |
| Parts Guarantee |
10 years |
| Compatible Fluid |
Engine and gear oils up to SAE140, auto
trans and hydraulic fluid
|
| Max Working Pressure |
1000psi (6900kPa) |
Metered Control Guns Data Sheet: PDF
Instruction Manual: PDF
Features & Benefits:
- Auto Non-Drip Nozzle
- Rigid extension
- 1/2″NPT swivel inlet
- Trigger guard
- Trigger lock
- Fully serviceable
