Metered Control Gun HG20 & IM012E, 1/2″ NPT inlet, rigid extension, auto shutoff nozzle, handle guard, 8 GPM/30 LPM flow rate, 1000psi.

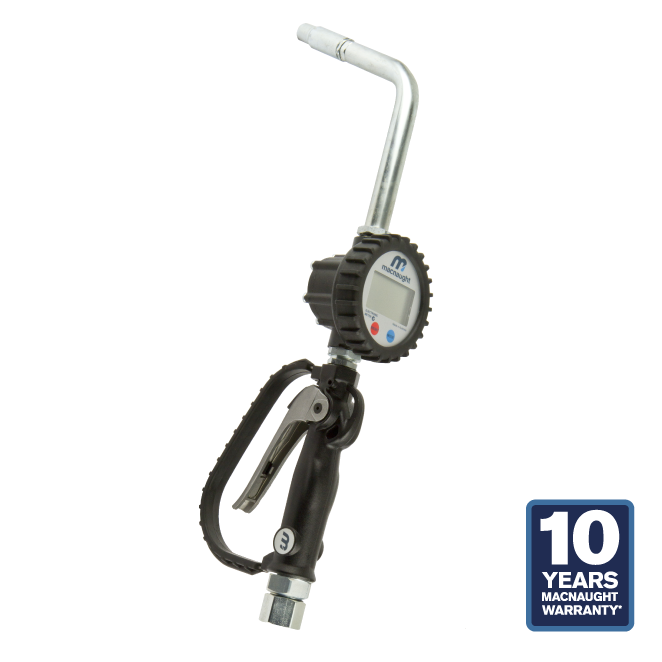

Macnaught offers the HG20R-012E-02 highly accurate electronic metered oil control with a rigid extension and automatic non-drip nozzle. The meter features a 6-digit totalizer and resettable batch total. It comes with a trigger guard, latching trigger and is fully serviceable. With a ½ inch NPT inlet and maximum working pressure up to 1000 psi / 6900kPa. this gun delivers a flow rate of up to 8 gpm / 30 lpm. Used for oil, ATF and antifreeze up to a maximum viscosity of SAE 140.
INCLUDES 10 YEAR WARRANTY!
Frequently bought together with: Ratio Air Operated Oil Stub Pump OILMASTER® T312-02 or the Ratio Air Operated Oil Stub Pump OILMASTER® T512-02
Macnaught Metered Control Gun Specifications
| Model number |
HG20R-012E-02 |
| Flow Range |
up to 8gal (30L)/min |
| Inlet Swivel |
1/2″ NPT (F) |
| Meter |
Electronic |
| Meter Accuracy |
+/-0.5% |
| Features |
6 digit totalizer |
| Extension |
Rigid with non-drip nozzle |
| Non drip nozzle |
Automatic |
| Latching Trigger |
√ |
| Fully Serviceable |
√ |
Warranty
|
10 years |
| Parts Guarantee |
10 years |
| Compatible Fluid |
engine, gear, ATF, hydraulic oils up to SAE140 viscosity & anti-freeze/anti boil |
| Max Working Pressure |
1000psi (6900kPa) |
Metered Control Guns Data Sheet: PDF
Instruction Manual: PDF
Features & Benefits:
- Digital meter accurate to +/- 0.5%
- 6-digit totalizer
- Auto Non-Drip Nozzle
- Rigid extension
- 1/2″NPT swivel inlet
- Trigger guard
- Trigger lock
- Fully serviceable
