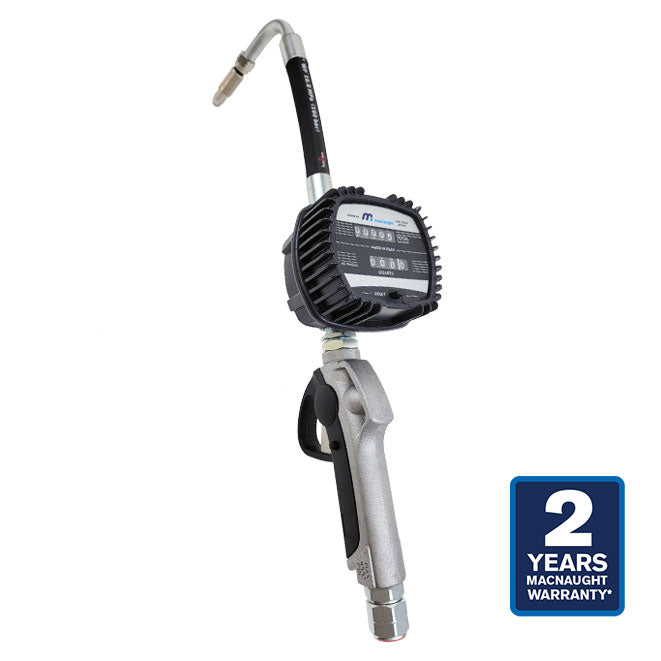

MECHANICAL METER OIL DISPENSING GUN
Hard to find Mechanical Register Oil Dispensing Gun. Registers in Quarts (resettable) and Totalizes (non-resettable) in Gallons! Compact, reliable and lightweight with easy to use mechanical counter. Perfect for light and heavy duty shop use. The Flexible Spout with Manual Non Drip Nozzle is fitted with a balanced valve for reduced trigger pressure. The HG40P-02 is compact, lightweight and comes with a full 2 year warranty. Shop operators love the simple yet robust Mechanical Meter Oil Dispensing Gun.
No calibration, easy to use with 1% accuracy. It’s the simplest way to measure a wide range of oils.
Full 2 Year Warranty.
Macnaught Metered Control Gun Specifications
| Model number |
HG40P-02 |
| Flow Range |
.26 – 7.9 GPM - 1-30 LPM |
| Meter Accuracy |
+/- 1% |
| Max Operating Pressure: |
1,000 PSI / 6895 kPa |
| Operating Temps: |
10F to 140F -10C to 60C |
| Connection: |
½” NPT |
| Extension |
flexible |
| Non drip nozzle |
manual |
| Warranty |
2 years |
HG40P-02 Mechanical Meter Data Sheet: PDF
Features & Benefits:
- Simple to Use, no programming or batteries required
- Good for all oils with a flow range of .26 – 7.8 GPM / 1-30 LPM
- Mechanical Reset button for quart registration
- Flexible Spout with Manual Non Drip Nozzle
Value Proposition:
- Accurate control and measurement of oil usage.
