Macnaught’s M3 DP10-001 air-operated diaphragm pump features a, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions. – Up to 5 times longer diaphragm life compared to other (AOD Pump) air operated diaphragm pumps in its class.

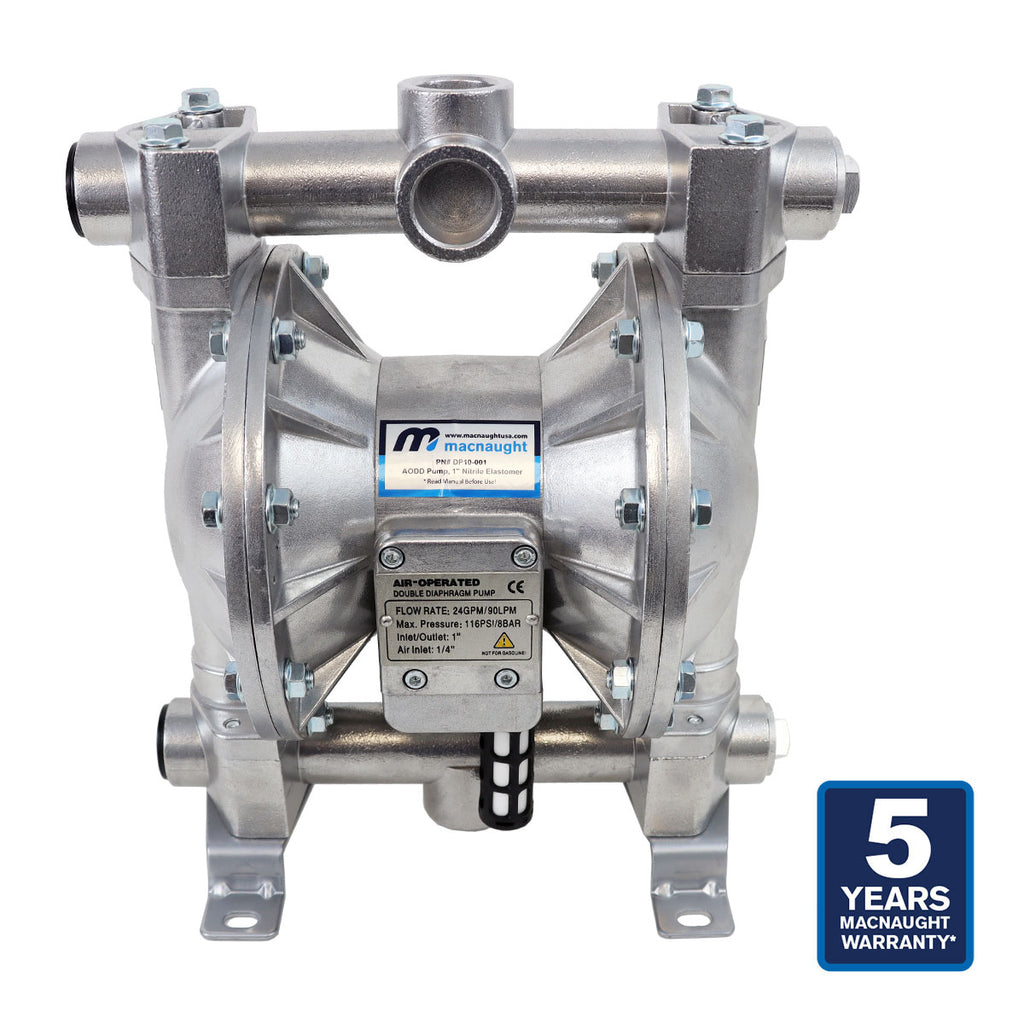

M3 DP10-001 1″ NPT AOD Pump with Aluminum Body & Nitrile Diaphragms. 24 GPM / 91 LPM
Suitable Fluids: Fuels, Oils, Waste Oil, Grease, General Automotive & Repair Fluids
Need a flow meter for your pump? Check out our MX Meter Collection Here
Instruction Manual: PDF
Features & Benefits:
- Flow Rate: 24 GPM / 91 LPM
- Pump Body: Aluminum
- Pump Diaphragm: Nitrile
- Inlet / Outlet: 1”
- Max Particle Size: 1/8”
- Max Temp: 140F / 60C
- Air Inlet: ¼”
- Max: Inlet / Outlet Air Pressure: 115 PSI / 793 kPa
- Maximum Head: 164 FT
- Maximum Suction Height: 10 FT
