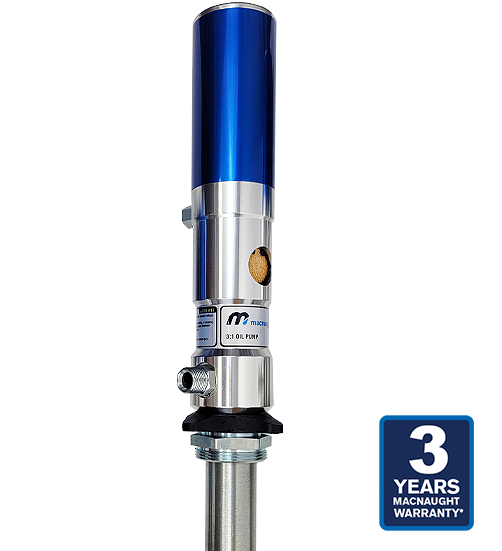

Macnaught M3 Series 3:1 pneumatic oil pumps are high quality economically priced pumps. The ideal choice for the busy repair shop or service truck center. High Flow Rates and Low Air Consumption.

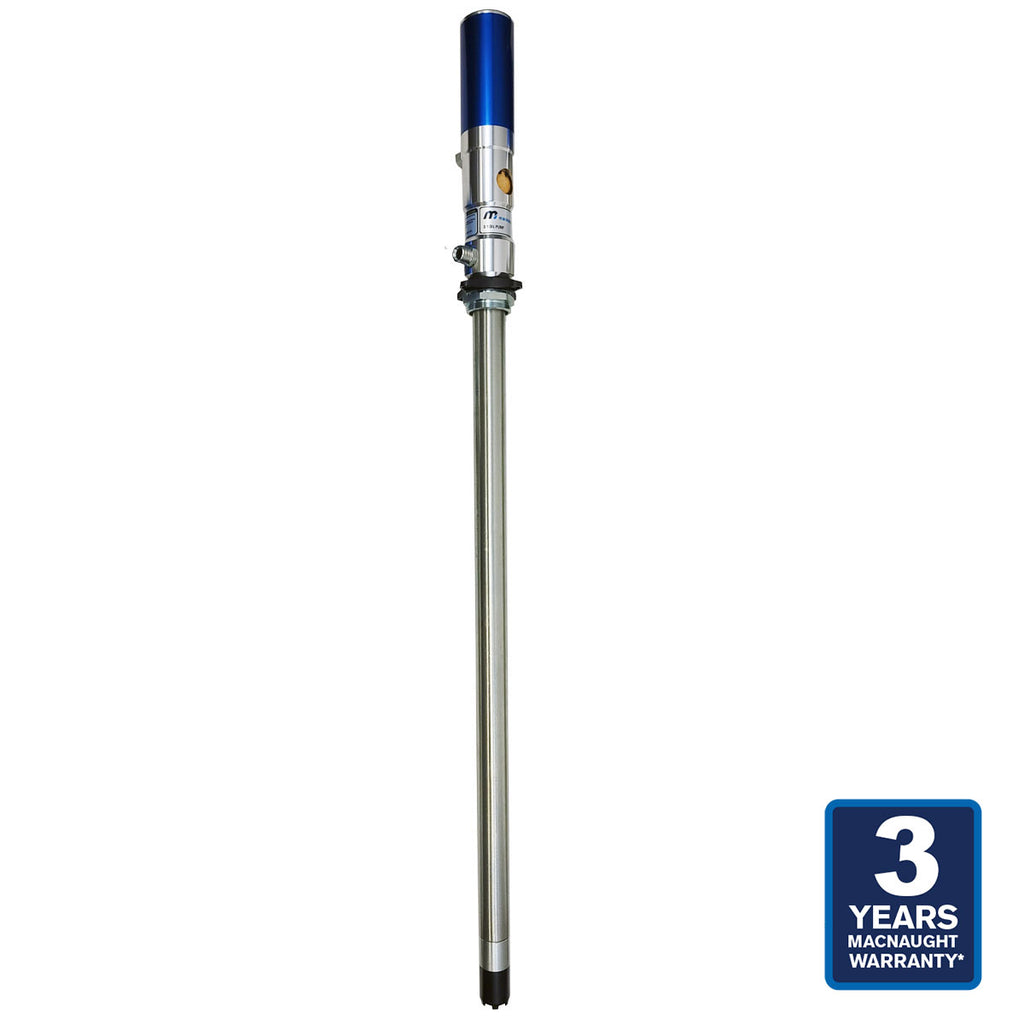

M3 OP583-1-001 – 3:1 Standard Oil Pump with fixed carbon steel suction tube for 205 Liter / 55 gallon Drums. 5.25 GPM / 20 LPM with 2-1/2 inch Motor Diameter.
INCLUDES 3 YEAR WARRANTY!
Macnaught M3 Air Operated Oil Pump Specifications
| Model number |
OP583-1-001 |
| Pump ratio |
3:1 ratio |
| Air Inlet |
30 – 150 PSI / 207-1035 kPa |
| Max Fluid Pressure |
450 PSI / 3100 kPa |
| Air Motor Diameter |
2 1/2 Inch |
| Air Consumption |
3.6 CFM@ 150 PSI / 1035 kPa |
| Free Flow |
5.25 GPM / 20 LPM |
| Suction Tube Diameter |
1 5/8 Inch |
| Suction Tube Length |
37" |
| Air Inlet |
1/4 Inch FNPT |
| Oil Outlet |
1/2 Inch MNPT |
| Warranty |
3 years |
Macnaught Air Operated Oil Pump data sheet: LINK
Instruction Manual: PDF
Features & Benefits:
• Double Acting, Highly Efficient & Light Weight
• Suitable for all oils up to SAE 140W
• Waste Oil, Hydraulic oil, Coolant and ATF compatible
• Each M3 Oil Pump comes with Suction Tube & Filter
• Adjustable 2 inch Bung Adapter
• Minimal Internal Pump Component Design
• 3 Year Warranty
