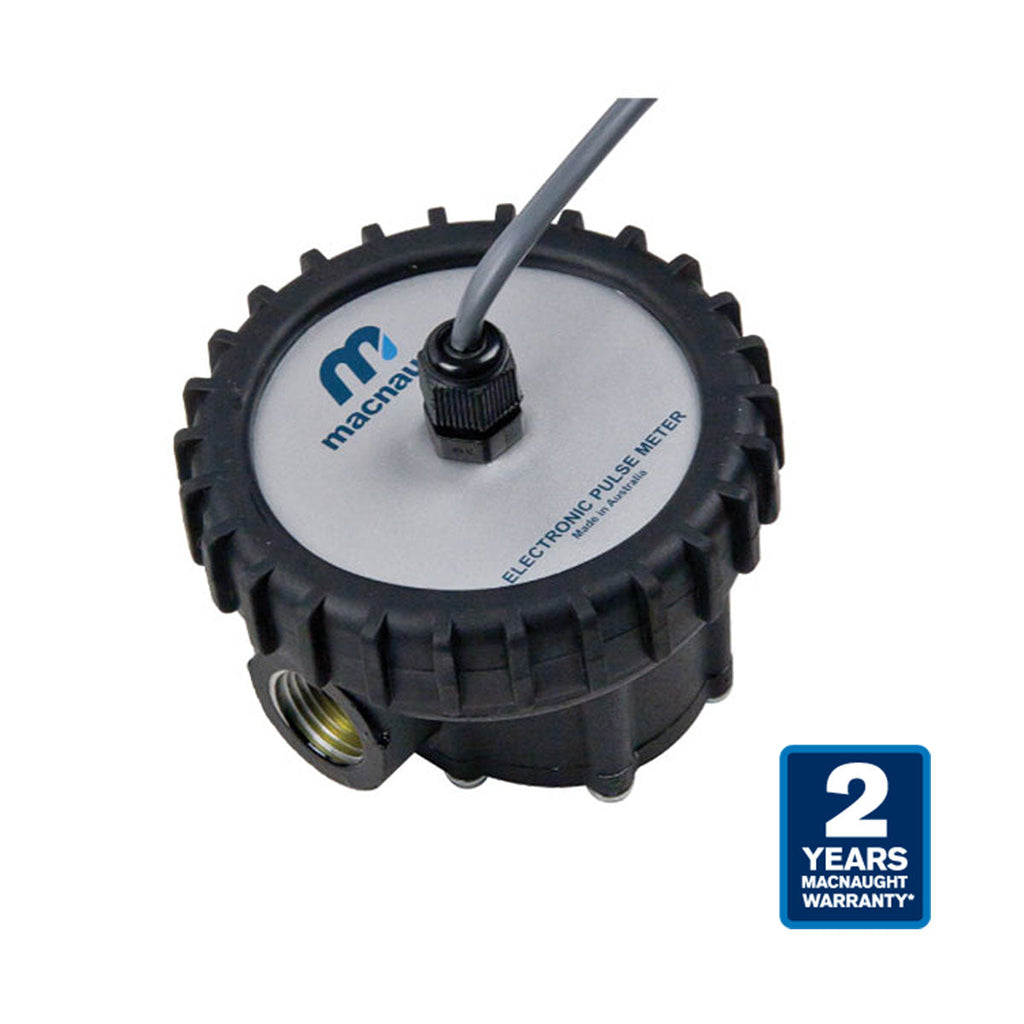

In-line Oval Gear Oil Flow Meter
Macnaught offers the IM019P-02 in-line oval gear pulse output with accuracy of +/- 0.5%. The 3/4 inch NPT ports and a working pressure of up to 1,000 psi combine to allow for flow rates of up to 21 gallons a minute. Used for in-line oil monitoring applications or can be added to a non-metered oil guns. Compatible with oil, ATF, hydraulic fluid, diesel, kerosene and antifreeze up to a maximum viscosity of SAE 140. All Macnaught in-line meters come with a fully supported 2-Year Warranty!
INCLUDES 2 YEAR WARRANTY!
Features & Benefits:
- In-line oval gear technology
- Economic and accurate fluid measurements
- Flow rate up to 21 gallons per minute with up to SAE140 viscosity
- Compatible with oil, ATF, hydraulic fluid, diesel, kerosene and antifreeze
Value Proposition:
- Economic, accurate and reliable electronic flow meter
Macnaught Oil Flow Meters
| Model Number |
IM019P-02 |
| Flow range |
0.8-21gal(3 - 80L)/min |
| Meter / register |
Oval gear / Pulse output |
| Accuracy (flow rate) |
+/- 0.5% (lube oils) |
| Features |
Pulse output model includes 1 meter lead with Reed Switch Output |
| Protective shroud |
√ |
| Inlet port |
3/4" NPT (F) |
| Outlet port |
3/4" NPT (F) |
| Fully serviceable |
√ |
| Warranty¹ |
2 years |
| Parts guarantee² |
10 years |
| Compatible fluids |
Oils up to SAE140, automatic trans fluid, engine oil, gear oil, hydraulic oil. coolant, diesel, kerosene |
Documentation
Macnaught In-line oil meter data sheet: PDF
Instruction Manual: PDF
