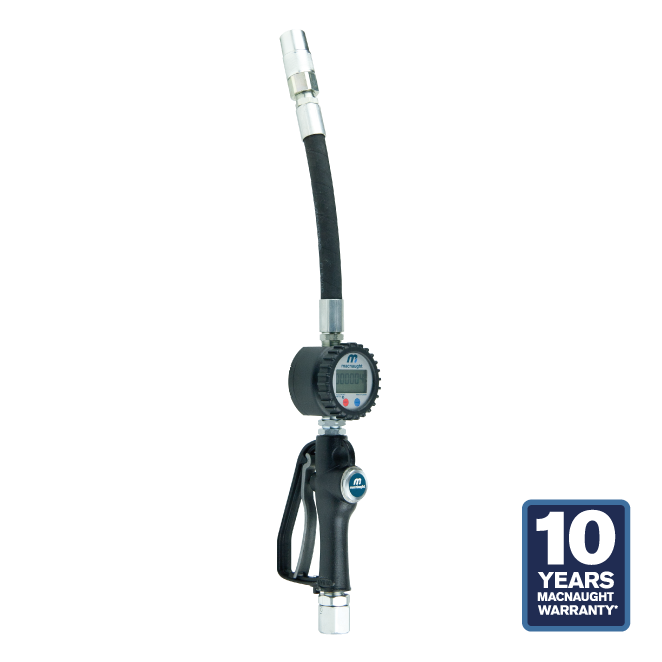

HG100/IM019E High Flow Metered Gun with wide Temperature LC Display. 3/4″ NPT inlet.
High volume oil control gun with flexible extension and manual non-drip nozzle. Fitted with trigger guard locking trigger and full flow 3/4″ NPT (F) inlet swivel. Six digit digital display meter. Up to 1500 psi (10,350 kPa) maximum working pressure. Flow rate up to 15 US gal/min (57L/min). The Manual nozzle allows full flow with minimum pressure drop.
INCLUDES 10 YEAR WARRANTY!
Frequently bought together with: Ratio Air Operated Oil Stub Pump OILMASTER® T312-02 or the Ratio Air Operated Oil Stub Pump OILMASTER® T512-02
Macnaught Metered Control Gun Specifications
| Model number |
HG100-019E-02 |
| Flow Range |
up to 15gal (57L)/min |
| Inlet Swivel |
3/4″ NPT (F) |
| Meter |
Oval gear / Digital |
| Meter Accuracy |
+/-0.5% (lube oils) |
| Features |
Includes all HG100 Std features
plus 6-digit digital display , resettable batch totaliser, resettable and non resettable totals, flow rate mode, c/w protective shroud.
|
| Extension |
Flexible |
| Non drip nozzle |
Manual |
| Latching Trigger |
√ |
| Fully Serviceable |
√ |
Warranty
|
10 years |
| Parts Guarantee |
10 years |
| Compatible Fluid |
oils up to SAE140, automatic trans fluid, engine oil, gear oil, hydraulic oil, coolant |
| Max Working Pressure |
1500psi (10 350kPa) |
Metered Control Guns Data Sheet: PDF
Instruction Manual: PDF
Features & Benefits:
- Allows high flow with minimum pressure loss
- Auto Non-Drip Nozzle
- Flexible extension
- 3/4" NPT swivel inlet
- Six digit digital display meter
- Trigger guard
- Trigger lock
- Fully serviceable
Value Proposition:
- Allows high flow with minimum pressure loss
Package includes:
- HG100 Handle
- Flexible extension
- Full Flow manual non-drip nozzle
